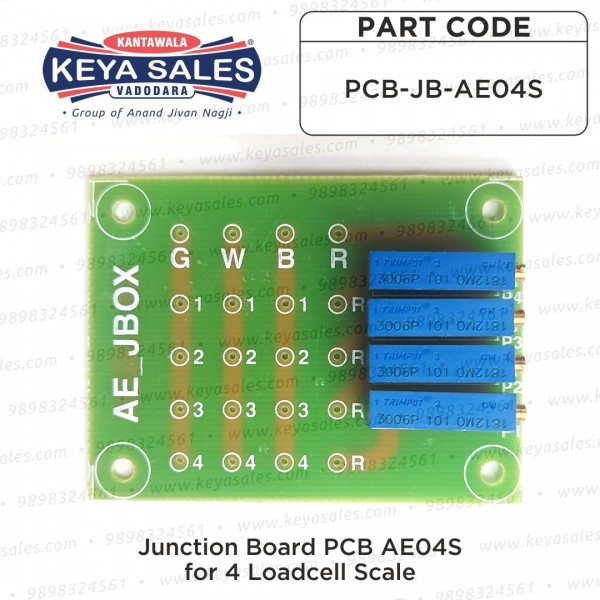

Junction Board PCB (JB) for weighbridge and 4 load cell weighing scale

Weighbridge junction box PCB 4 load cell, weighbridge abs junction box 4 load cell, weighbridge loadcell ss junction box 6 load cell, weighbridge ss junction box 8 load cell, and weighbridge ss junction box 10 load cell are just a few of the many products we offer.

This Junction Board PCB is maintained outputs of various types of load cells are electronically added together in a junction box PCB to produce a single output that is equal to the sum of the loads on each load cell. To match the load cell's outputs, potentiometers are provided in series with the bridge excitation. Typically found in applications such as industrial scales, small weighbridges, bins, tanks, hoppers, and platforms.
